Appendix

This appendix consolidates all reference data, astronomical constants, and bibliography sources used in the framework. Every value is read from the model’s registry, so the tables here agree with the pages that derive them.

This page establishes:

• Earth’s clock and long periods, the precession rates, and the Earth, Moon and Sun constants with their cycles — I. Solar System Data.
• The parallax chain — Parallax Calculations.
• Earth’s, the Sun’s and the Galaxy’s movement budgets — II. Heliocentric Movements.
• Every cited source — III. Bibliography.

I. Solar System Data

Earth’s Clock and Long Periods

All cycle durations below are J2000 values — the model’s own dynamical periods, read against its precession clock (the former integer-divisor labels are retired — Earth’s Clock). The spin quantities lengthen at geological time with the clock; the orbital ones do not — see Expanding Resonance for the deep-time evolution layer.

Precession Rates

Earth Data

Earth Cycles

Moon Data

Moon Cycles

Sun Data

Parallax Calculations

The arcseconds per radian value (ρ = 648,000/π) is the conversion factor between angular measurement in arcseconds and radians.

The 1 arcsecond displacement (725.270943796471 km) represents the distance at 1 AU that subtends 1 arcsecond, calculated as Earth’s radius divided by the solar parallax:

6,378.1369994839 km / 8.794143836 arcsec = 725.270943796471 km

The distance to the Sun (1 AU) is then simply:

725.270943796471 km × 206,264.806247096 arcsec/radian = 149,597,870.698828 km

II. Heliocentric Movements

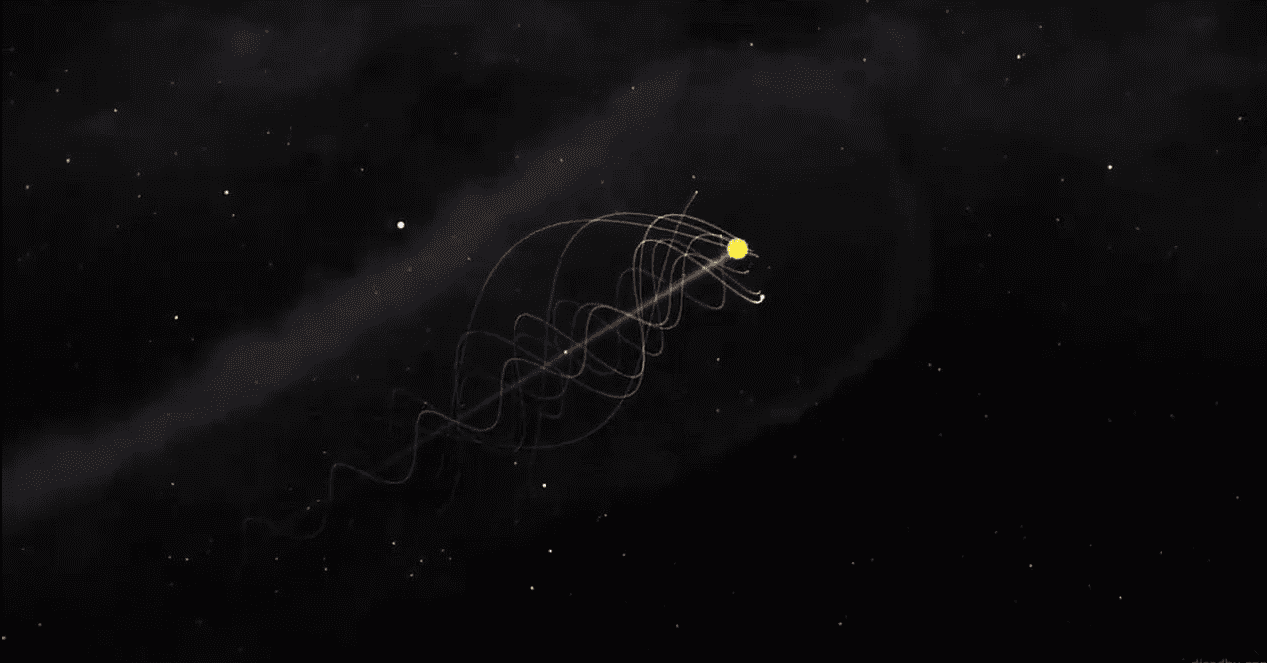

The heliocentric model involves numerous complex movements. These can be categorized based on the body in motion—Earth, Sun, or Galaxy—and divided into three primary types: rotation, linear motion, and precession.

Earth Movements

1. Rotation: Earth rotates 360° on its axis

   • Mean solar day: ~86,400 SI seconds
   • Sidereal day: ~86,164.09 SI seconds
   • Stellar day: ~86,164.10 SI seconds

2. Orbital Motion: Earth revolves around the Sun

   • Orbital path: ~940,000,000 km
   • Period: ~365.24219 days

3. Earth-Moon System: Both orbit a common center of gravity

   • Mass ratio: ~81.3
   • Period: ~29.53 days (lunar month)

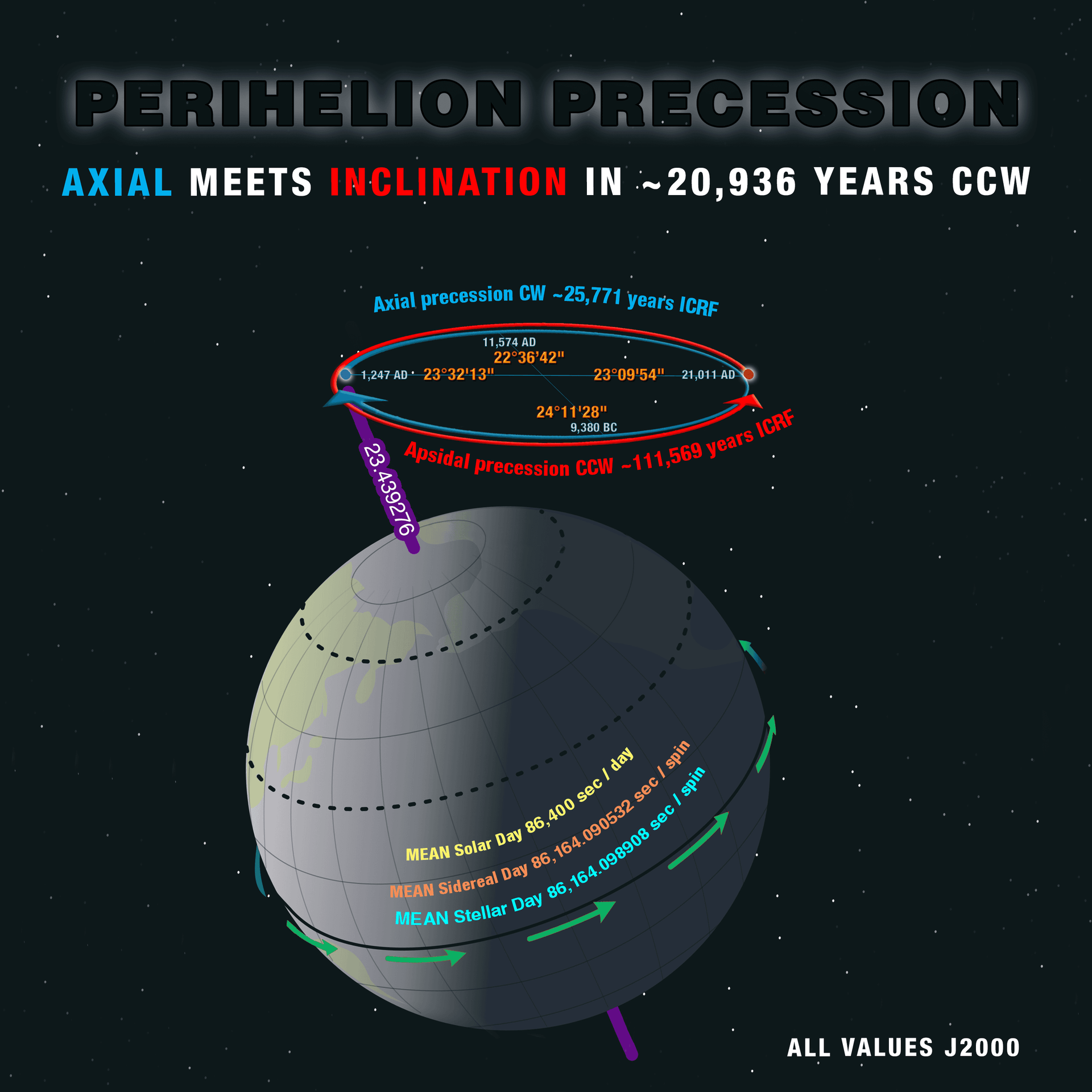

4. Axial Precession: Polar axis wobble

   • Mainstream (J2000): ~25,771 years
   • ESSRT: ~25,772 years (the clock, J2000 reading)
   • Direction: Clockwise (backwards in time)

5. Perihelion Precession: Movement of closest approach

   • Mainstream (J2000): ~20,951 years
   • ESSRT: ~20,938 years (the perihelion-of-date beat)
   • Direction: Forward in time

6. Obliquity Cycle: Axial tilt variation

   • Mainstream (J2000): ~41,040 years, range ~22.1° to ~24.5°
   • ESSRT: ~41,099 years (the obliquity beat), range 22.08° to 24.45°
   • Current value (2000 AD): ~23.4393°

7. Inclination Cycle: Orbital plane variation

   • Mainstream (J2000, vs ecliptic): ~68,700 years
   • ESSRT (nodal precession, vs ecliptic): ~68,751 years
   • ESSRT (apsidal precession, vs ICRF): ~111,635 years
   • Current inclination: ~1.57869°

8. Chandler Wobble: Polar location variation

   • Cycle: ~14 months
   • Amplitude: 3–15 meters

Sun Movements

1. Solar System Barycenter: Sun wobbles around center

   • Primary influence: Jupiter
   • Period: ~11.859 years

2. Galactic Orbit: Sun orbits the Milky Way

   • Distance from center: ~25,000-28,000 light years
   • Speed: ~230 km/s (828,000 km/h)
   • Period: ~250 million years

Galaxy Movements

Our Milky Way Galaxy moves through the Universe at hundreds of km/s, with the Local Group of galaxies being pulled toward the Great Attractor in the Hydra-Centaurus / Norma direction.

III. Bibliography

“Your time is limited, so don’t waste it living someone else’s life. Don’t be trapped by dogma — which is living with the results of other people’s thinking.”

— Steve Jobs (Stanford Commencement Speech, 2005)

Astronomical Data & Tools

JPL Horizons — ssd.jpl.nasa.gov/horizons  The JPL Horizons solar system data and ephemeris computation service provides access to key solar system data.

• JPL Astronomical Constants

Webgeocalc (WGC) — wgc.jpl.nasa.gov  Web-based graphical user interface to SPICE system observation geometry computations.

NASA Space Place — spaceplace.nasa.gov

IERS Earth Orientation Parameters — hpiers.obspm.fr  Astronomical constants and Earth orientation parameters from the International Earth Rotation and Reference Systems Service.

Wikipedia Constants — Astronomical Constant

Astronomy Textbooks

• Introduction to Astronomy and Cosmology (PDF)
• Astronomy on OpenStax (Source 1)
• Astronomy on OpenStax (Source 2)
• Astronomical Algorithms by Jean Meeus (PDF)
• The Copernican Revolution by Thomas Kuhn (PDF)

Precession & Earth’s Motion

Key Research Papers

• Inclination, Axial & Obliquity Precession Connection (PDF)
• Physics Forums Discussion
• Khan Academy: Apsidal Precession & Milankovitch Cycles

Background Information

• Wikipedia: Axial Precession
• Earth’s Motions
• Coordinate Changes (UVA)
• Why does Earth’s axis move opposite to its rotation?

Historical 9.12 ms debate. Under the framework this is resolved: ~9.13 ms is the axial precession rate counted in ecliptic longitude — the frame the “one extra sidereal day per axial precession cycle” identity is written in; the observed stellar–sidereal day offset is ~8.38 ms — the same axial precession projected onto the equator by the obliquity, m = p·cos ε. Both numbers are real; they name different measurements. See Days & Years — coin rotation paradox.

• Karl-Heinz Homann: Precession Background (Archive)
• Uwe Homann: Journal of Theoretics (PDF)

Related Work

• Duncan Steel: EOaCCC (PDF)
• Duncan Steel: PPPIGW (PDF)

Milankovitch Cycles & Climate

• Wikipedia: Milankovitch Cycles
• Skeptical Science: Climate Relation
• The 100,000 Year Problem (PDF)
• Milankovitch: Father of Paleoclimate Modelling (PDF)
• Modified Milankovitch Theory (PDF)
• A Brief History of Climate Change (UK)

Planetary Events & Catalogues

Transits

• Mercury Transit Catalogue (NASA)
• Venus Transit Catalogue (NASA)
• Planetary Transits and Occultations (Wikipedia)

Mars Data

• Mars Opposition Dates
• Mars Opposition Data (OPS Alaska)
• Long-term Mars Close Approaches (PDF)

Jupiter & Saturn Conjunctions

• Jupiter-Saturn Conjunction Data
• Great Conjunction (Wikipedia)
• Jupiter-Neptune Conjunction Data
• Triple Conjunction Dates (Wikipedia)
• List of Future Astronomical Events (Wikipedia)

Orbital Elements

• Ascending & Descending Nodes Visualized
• Wikipedia: Orbital Resonance

The Invariable Plane

• Souami & Souchay 2012: The Invariable Plane (PDF)

Academic Search Engines

Return to The Model or explore the 3D Simulation.
